ITS-1530 3.5 Kw CNC Wood Router

ITS-1530 3.5 Kw CNC Wood Router Specification

Product Type
CNC Router Machine

General Use
Carving & Cutting Wood,stone,Plywood,ACP,MDF,Acrylic

Material
Other

Type
CNC Router

Weight (kg)
1200 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Power Source
Electric

Rigidity
High

Motor
DC Motor

Spindle Speed
10000 mm/m

Dimension (L*W*H)
1500*3000*300 Millimeter (mm)

Feature
High Speed, High Precision

Color
Yellow

Warranty
1

ITS-1530 3.5 Kw CNC Wood Router Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
20 Units Per Month

Delivery Time
3 Days

Sample Available
No

About ITS-1530 3.5 Kw CNC Wood Router

X-Y Axis Working Area 1500 x 3000 mm

Z Axis Working Area 300 mm

Spindle Power 3.5 kW

Model 1530A

Machine Type 3 Axis

Job Material Acrylic, Sign Board, Wood, HDF,

Plywood,Board, MDF

Spindle Head Type Single Spindle

X-Y Movement Rack & Pinion

Z Movement Ball Screw

Minimum order quantity 1 Piece

A Wood Router is a versatile machine designed for precise cutting, carving, and engraving on wood and other materials. Utilizing a Gantry Movement style structure, the Wood Router offers a scientifically designed table for efficient work processes.

The Wood Router boasts high precision in its X and Y-axis movements, thanks to imported gear and rack transmission, resulting in stable, quiet operation even at high speeds. The Z-axis is driven by a ball bearing screw rod with an original screw nut from a reputable European brand, providing a travel distance of up to 200mm.

Equipped with large-scale straight-liner square guiding tracks imported from Taiwan, the Wood Router ensures smooth and precise movement during operation. With its maintenance-free guarantee for one year, it offers reliability and efficiency for a variety of applications.

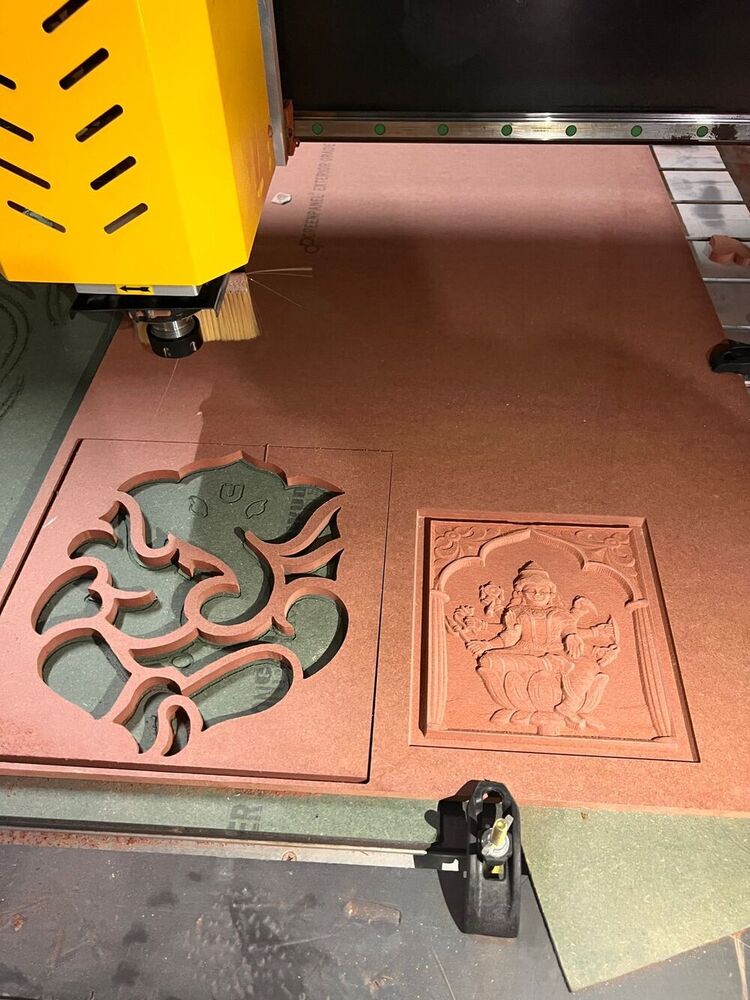

In terms of application fields, the Wood Router excels in processing advertising plates, acrylic, plastic, and wood products with high efficiency. It's ideal for intricate handicraft cutting, 3D engraving, and creating various signboards. Additionally, it can be used for creative projects requiring precision and versatility.
